SaVoir V11.0.0

New features
1 SaVoir Graphical User Interface has been upgraded to use SVG icons, which scale well on different monitor resolutions.
2

Important updates to the user interface

  • "Intersection Mode" disappears, it is no longer available to users. SaVoir will always be in Intersection mode

  • "Refresh" button disappears, replaced by a "Calculate" button which triggers all calculation

  • Calculation Mode, MANUAL or AUTOMATIC, disappears. SaVoir will always be in MANUAL mode, meaning that one has to select sensors, AOIs, etc. and then press "Calculate"

  • Under the "Calculate" button there is a "Full swaths" button to see the swaths in full length.

  • When you press "Calculate" and SaVoir starts looking for intersections the button is replaced by a "Cancel" button that allows it to stop the thread. This "Cancel" is actually the "Abort" menu that was before

  • Optimization is also triggered under a the Calculate button

3

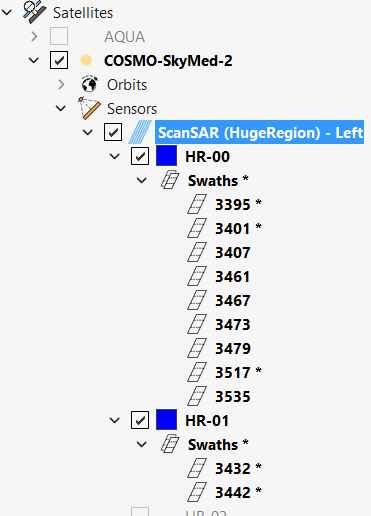

The Satellite scenario tree has been upgraded to show the swaths associated with a given sensor mode also on the tree.

4 The sensor wizard has been upgraded top work also on constellation sensors, allowing to edit a constellation sensor and apply the changes to all the satellites in the constellation.
5

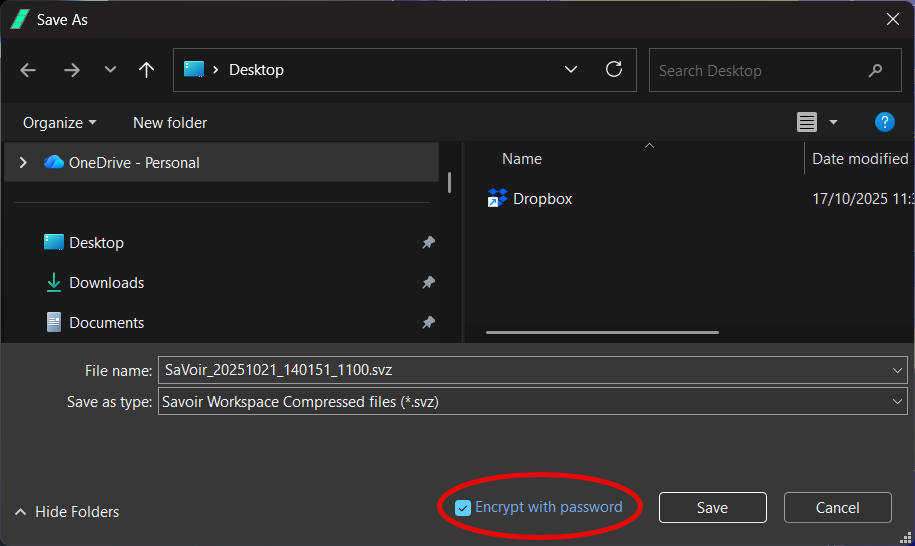

Saving and Loading workspaces in compressed formats has been upgraded to optionally allow using a decompression password.

6

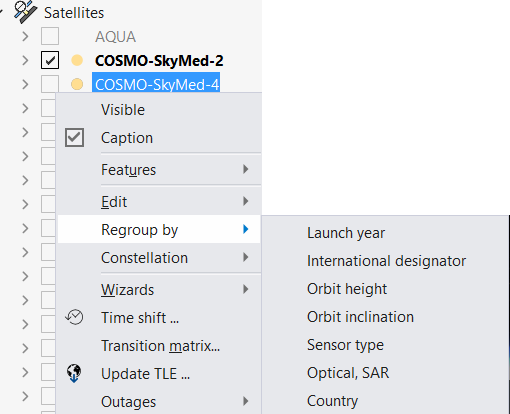

the Satellites scenario tree can be reorganised by defining a regrouping criteria, according to Launch year, Orbit height, International designator (Launch ID), etc.

7 A new Star Tracker wizard allows to create star trackers on a satellite
8 The intersection calculation pipeline, as well as the optimization, has been including the handling of constraints has been significantly reviewed and improved
9 When doing a swath calculation or an Optimization, and there are antennas selected, SaVoir will trigger also the calculation of antenna visibilities automatically.
Fixed source
1 Numerous bugs fixed and performance improvements

1

See Satellite configuration files
